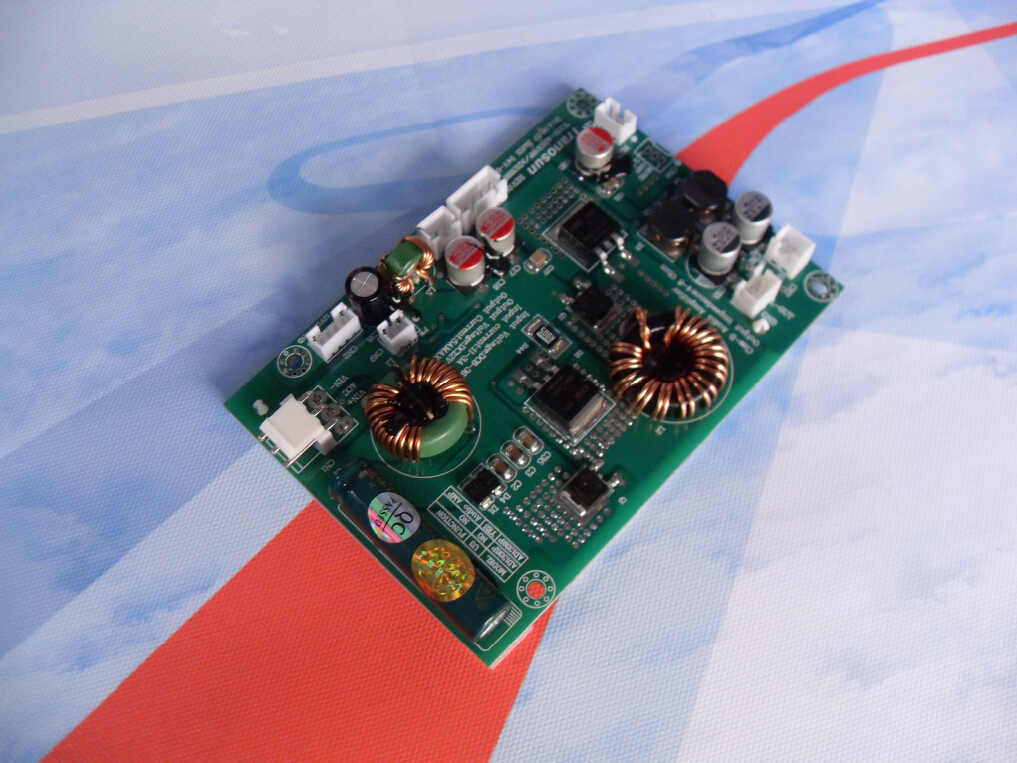

AD1339P-1H

Main Features

Working voltage: DC 8V-36V

Output voltage: 12V

Output Current: 4.0A (5.0A max)

File download

Description

* Working voltage: DC 8V-36V

* Output voltage: 12V

* Output Current: 4.0A (5.0A max)

* Enter with ACC control (optional)

* with a delay of 15 seconds boot (open the power board output

* When the supply voltage Vin <8 ± 0.5V, the power supply board guarantees that the V-Out output is delayed for 15 seconds and Vin> 8V in 15 seconds, and V-Out continues to output. When Vin <8 ± 0.5V and remains greater than 15 seconds, the power strip automatically cut off the output,

* Supply voltage: 50V <Vin> 36V, the power board will immediately disconnect all outputs

* disconnect the ACC connection, delay 1 hour (ie 60Min) off 12V total output,

* Disconnection of ACC, PW-OK pin immediately outputs signal ON / OFF pin of the control panel driver board to turn off the power for the purpose of power saving.

* Disconnect the ACC connector and the amplifier module is muted

* Overvoltage and overcurrent protection at the output

* output with super 8bit high-speed ADC sampling control output intelligent short circuit protection, short circuit from 0-30 meters can automatically identify short-circuit wire, automatic detection off

* The input has reverse polarity protection

* Built-in amplifier: Output power: 2 X 18 W 4 ohms

* Output ripple: <100M

* Working temperature: -20 ~ 60 ℃

* Relative humidity: 5 ~ 95% RH

* Safety standards: IEC60950 / IEC60065 / EN50498 / GB4943

* Electromagnetic compatibility standards:

 EN55022 & EN55024 Class B,

 IEC-60068-2-1, IEC-60068-2-2, IEC-61000-4-5 (ISO7637-2), Lever 3, IEC-61000-4-11 , Criteria B,

* Dimensions: (L) 108 * (M) 75 * (H) 13mm

* Weight: 65g
