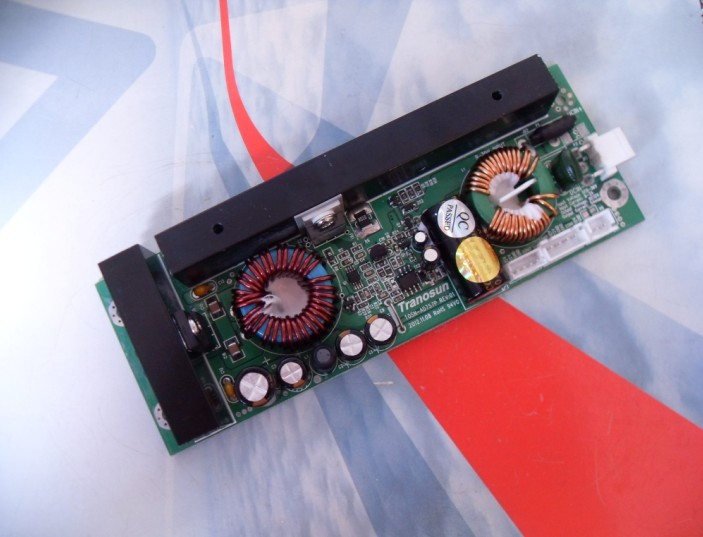

AD757P

Main Features

Working voltage: DC 5.5V-37V

Output voltage: 12V

Output current: 4.0A (5.5A max)



File download

Description

* Working voltage: DC 5.5V-37V

* Output voltage: 12V

* Output current: 4.0A (5.5A max)

* with a delay of 15 seconds boot (open power board output)

* When the supply voltage Vin <8 ± 0.5V, the power supply board guarantees that the V-Out output is delayed for 15 seconds and Vin> 8V in 15 seconds, and the V-Out keeps outputting; when Vin <8 ± 0.5V and remains greater than 15 seconds, the power strip automatically cut off the output,

* supply voltage: 50V <Vin> 36V, the power board will immediately disconnect all outputs

* he input has over-voltage protection

* The input has reverse polarity protection

* Output constant power protection

* The output has a super 8bit high-speed ADC sampling control output intelligent short circuit protection, short circuit conductor can automatically identify short circuit from 0-30 meters, automatic detection off

* Output ripple: <100Mv

* Working environment temperature: -40--85 ° C

* Relative humidity: 5 ~ 95% RH

* Safety standards: IEC60950 / IEC60065 / EN50498 / GB4943

* Electromagnetic compatibility standards:

EN55022 & EN55024 Class B,

IEC-60068-2-1, IEC-60068-2-2, IEC-61000-4-5 (ISO7637-2), Lever 3,
IEC-61000-4-11 , Criteria B,

* Dimensions: (L) 144 * (M) 51.2 * (H) 20mm

* Weight: 124 g
